| Model No |
3720-300W
|
3720-400W
|
3720-500W
|
|
|---|---|---|---|---|
|
Power
|
300W
|
400W
|
500W
|
|
| Product Dimension |
465×360×67mm
|
479×410×63mm
|
539×410×66mm
|
|
| Efficiency(Ra>70) |
135±10lm/W (10°)
|
|||
| Luminous Flux |
40500±3000 lm
|
54000±4000 lm
|
67500±5000 lm
|
|
| Efficiency(Ra>80) |
140±10lm/W (25°/ 40°/ 60°/ 90°/ 120°/90*120°)
|
|||
| Luminous Flux |
42000±3000 lm
|
56000±4000 lm
|
70000±5000 lm
|
|
| Efficiency(Ra>70) |
150±10lm/W (15°)
|
|||
| Luminous Flux |
45000±3000 lm
|
60000±4000 lm
|
75000±5000 lm
|
|
| Efficiency(Ra>70) |
170±10lm/W (25°/ 40°/ 60°/ 90°/ 120°/ 90*120°)
|
|||
| Luminous Flux |
51000±3000 lm
|
68000±4000 lm
|
85000±5000 lm
|
|
|
CCT
|
3000K;4000K;5000K;5700K;6500K
|
|||
|
Ingress Protection
|
IP66/ IK08
|
|||
|
Color Rendering Index
|
Ra>80/70
|
|||
|
Beam Angle
|
10°/15°/25°/ 40°/ 60°/ 90°/ 120°/ 90*120°
|
|||
|
Input Voltage
|
200-277V
|
|||
|
Power Factor
|
0.95
|
|||
|
Frequency
|
50-60HZ
|
|||
|
Driver Type
|
Constant Current | |||
|
Luminaire Net Weight
|
6.8kg
|
8.2kg
|
9kg
|
|
|
Packing Information
|
1pcs
|
1pcs
|
1pcs
|
|
|
Export Carton Size
|
61*45*14CM
|
66*50*14CM
|
71*50*14CM
|
|
|
GrossWeight
|
8.3KG
|
10KG
|
11.5KG
|
|
| Material | Housing |
Aluminum Alloy
|
||
| Optics |
PC+Tempered glass
|
|||
| Finish |
Powder Coating
|
|||
| Fixture Color |
Black
|
|||
| Mounting Option |
Bracket mounting
|
|||
|
Storage temperature range
|
-30℃~+70℃
|
|||
|
Storage humidity range
|
85% max. | |||
|
Operating temperature range
|
-30℃~+45℃
|
|||
|
Operating humidity range
|
85% max.
|
|||
|
Life Time
|
50000 hours
|
|||
|
Warranty
|
5 Years
|
|||
|
Dimmable
|
1-10V Dimmable
|
|||
|
Optional Accessories
|
AC120-277
|
|||
|
0-10V Dimmable
|
||||
|
Aluminum shading cover
|
||||
|
Wire guard
|
||||
|
CRI>80/90
|
||||
|
SPD 20KV
|
||||

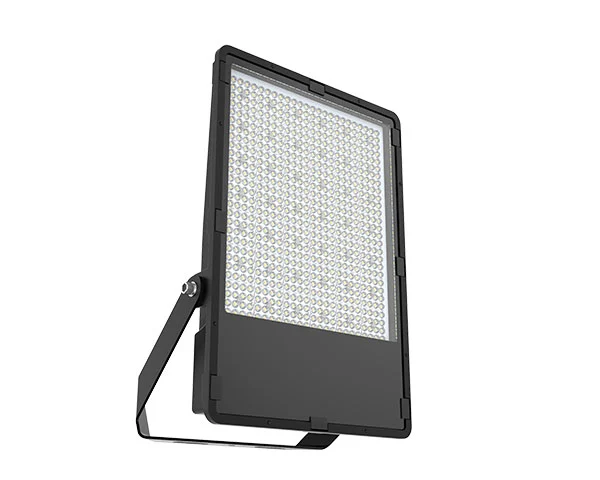

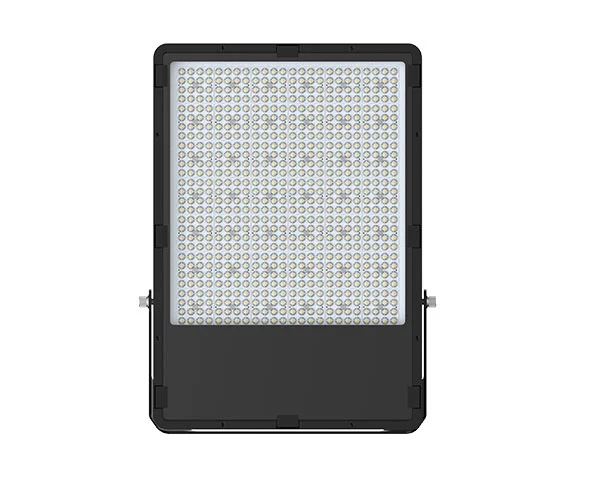

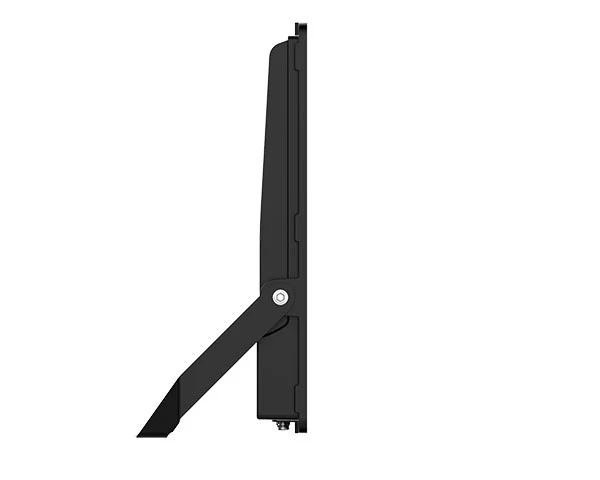

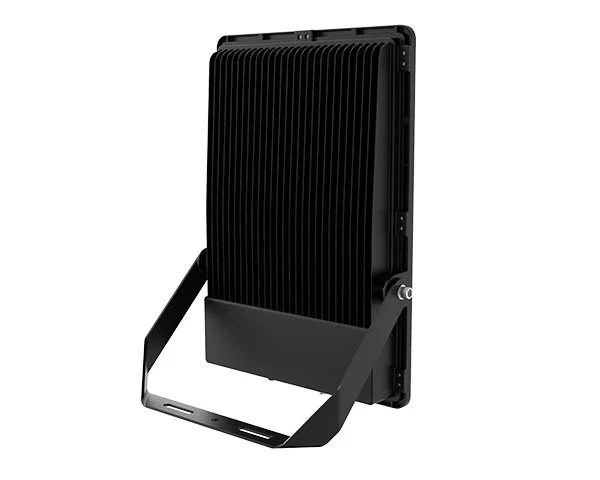

LED Flood Light 3720(300W-500W)
High-efficiency, high-power floodlights deliver outstanding illumination while maximizing lighting performance at the same power consumption. Designed for demanding outdoor applications, they are ideal for sports fields, parking lots, plazas, ports, docks, airports, building exteriors, and a wide range of other large-area lighting projects.
