Model No.
|
HL101-50W
|
HL101-100W
|
HL101-150W
|
HL101-200W
|
|
|---|---|---|---|---|---|
|
Product Dimension
|
330*265*190(mm)
|
385*317*190(mm)
|
|||
| Efficiency |
140±10lm/W
|
||||
|
Luminous Flux (±10%)
|
7000±500lm
|
14000±1000lm
|
21000±1500lm
|
28000±2000lm
|
|
|
CCT
|
3000K;4000K;5000K;5700K
|
||||
|
Ingress Protection
|
IP66
|
||||
|
IK Rating
|
IK10
|
||||
|
Wind resistance
|
Class 17 (56.1~61.2 m/s)
|
||||
|
Color Rendering Index
|
Ra>70
|
||||
|
Beam Angle
|
30° 60° 90°
|
||||
|
Driver Brand
|
TOMCARLINE
|
||||
|
Input Voltage
|
AC100-277V / 277-480V
|
||||
|
Power Factor
|
>0.9
|
||||
|
Frequency
|
47-63HZ
|
||||
|
Driver Type
|
Constant Current (CC)
|
||||
|
Luminaire Net Weight
|
12kg
|
12.3kg
|
15kg
|
15.5kg
|
|
|
Packing Information
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
|
|
Export Carton Size
|
43*41*27(cm)
|
43*41*27(cm)
|
48*45*27(cm)
|
48*45*27(cm)
|
|
|
Gross Weight
|
13.1kg
|
13.4kg
|
16.4kg
|
16.9kg
|
|
|
Material
|
Housing
|
ADC12
|
|||
|
Optics
|
Tempered Glass+Lens
|
||||
|
Finish
|
Powder Coating
|
||||
|
Fixture Color
|
Red
|
||||
|
Mounting Option
|
Bracket type / Pole type
|
||||
|
Ambient Temperature
|
-30~+50℃
|
||||
|
Life Time
|
50000 hours
|
||||
|
Warranty
|
5 Years
|
||||
|
Dimmable
|
1-10V dimmable
|
||||

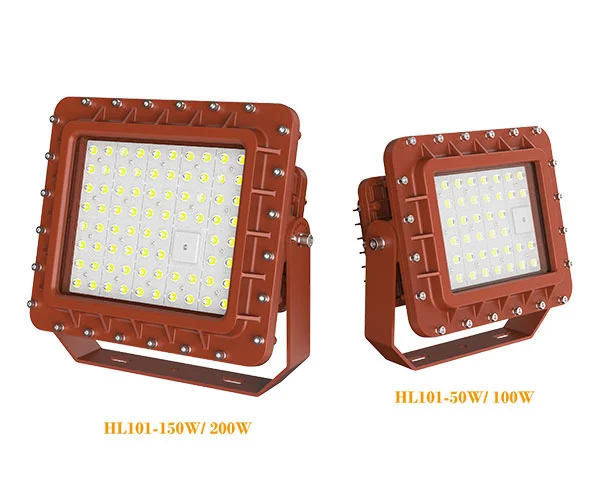

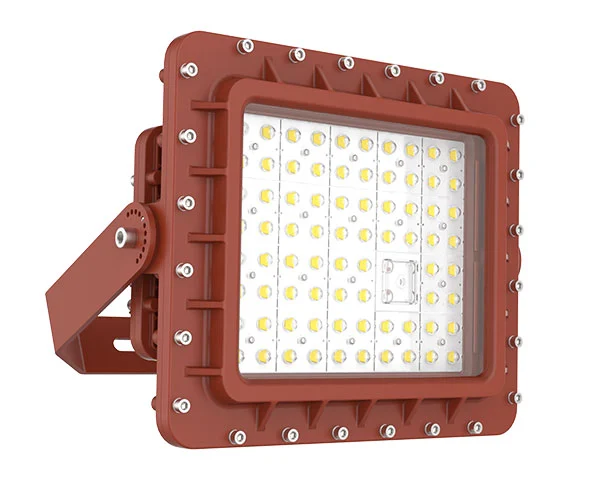

LED Flood Light Explosion Proof HL101
Safe and reliable lighting for hazardous environments, delivering high luminous efficacy and excellent energy efficiency. The built-in handle allows for quick and easy angle adjustment, providing greater flexibility for different lighting needs. Ideal for demanding applications in oil & gas, chemical processing, mining, energy, food processing, spray painting, coating, and other industrial sectors.
