Model No.
|
HL182-60W
|
HL182-120W
|
HL182-120W
(Motion sensor)
|
HL182-240W
|
HL182-240W
(Motion sensor) |
|
|---|---|---|---|---|---|---|
|
Power
|
30W-60W
|
70W-120W
|
70W-120W
|
130W-240W
|
130W-240W
|
|
|
Product Dimension
|
φ218*187.2mm
|
φ260*188.7mm
|
φ260*194.7mm
|
φ328*191.7mm
|
φ328*197.7mm
|
|
|
Explosion-proof criteria
|
Ex nR IIC T6/T4 Gc (30W-120W)
Ex tb IIIC T80 /130 Db (30W-120W)
|
Ex nR IIC T5/4 Gc (130W-240W)
Ex tb IIIC T95 /T130 Db (130W-240W)
|
||||
| Efficiency |
140±10lm/W
|
|||||
|
Luminous Flux
|
4200-8400lm
|
9800-16800lm
|
9800-16800lm
|
18200-33600lm
|
18200-33600lm
|
|
|
CCT
|
3000K;4000K;5000K;5700K;6500K
|
|||||
|
Ingress Protection
|
IP66 & IK10
|
|||||
|
Anti-vibration Grade
|
3G
|
|||||
|
Wind resistance
|
LV.12
|
|||||
|
CRI
|
Ra>70
|
|||||
|
Beam Angle
|
60° 90° 120°
|
|||||
|
Driver Brand
|
TOMCARLINE
|
|||||
|
Input Voltage
|
AC100-277V
|
|||||
|
Power Factor
|
>0.9
|
|||||
|
Frequency
|
47-63Hz
|
|||||
|
Driver Type
|
Constant Current
|
|||||
|
Luminaire Net Weight
|
1.7kg
|
2.4kg
|
2.4kg
|
3.3kg
|
3.3kg
|
|
|
Packing Information
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
|
|
Export Carton Size
|
31.2*31.2*25.4CM
|
31.2*31.2*25.4CM
|
31.2*31.2*25.4CM
|
38.0*38.0*20.4CM
|
38.0*38.0*20.4CM
|
|
|
Gross Weight
|
2.9kg
|
3.6kg
|
3.6kg
|
4.6kg
|
4.6kg
|
|
|
Cable gland
|
φ8-φ10mm, φ11-φ14mm
|
|||||
|
Cable lead-in thread
|
M25×1.5
|
|||||
|
Operating temperature range
|
-35℃ +40℃ /+60℃
|
|||||
|
Mounting Option
|
Side wall installation / Ceiling installation / Pole mounting / Bending rod installation
|
|||||
|
Material
|
Housing
|
ADC12
|
||||
|
Optics
|
PC
|
|||||
|
Fixture Color
|
White aluminium
|
|||||
|
Light Source Life
|
50000 hours
|
|||||
|
Warranty
|
5 Years
|
|||||
|
Optional Accessories
|
1-10V dimmable/ Build-in motion sensor
|
|||||

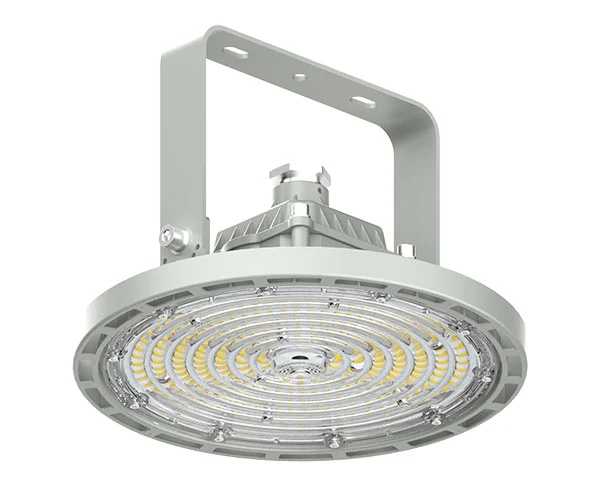

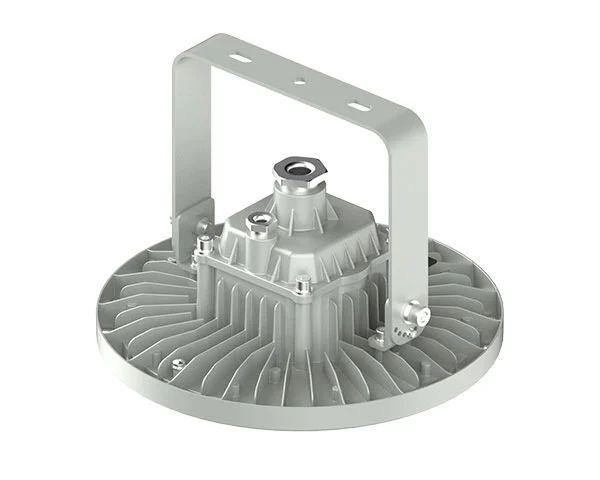

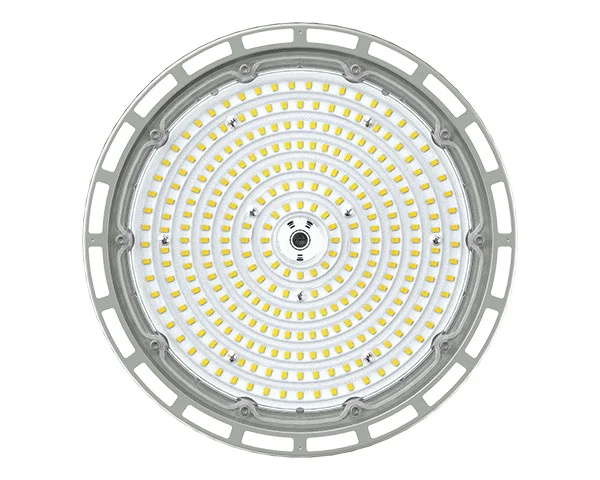

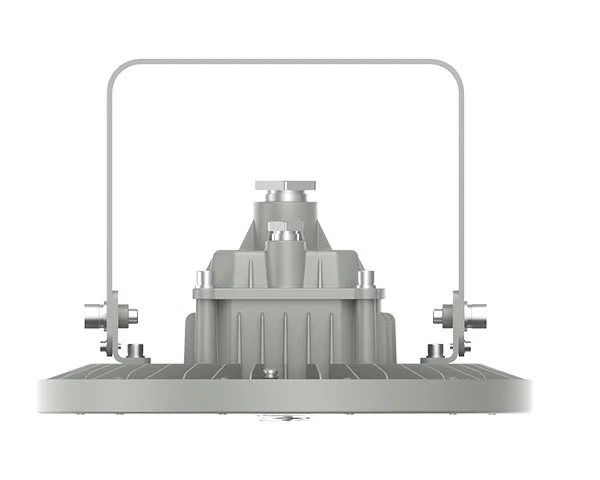

LED High Bay Light Explosion Proof HL182
Safe and reliable, these explosion-proof lighting fixtures deliver uniform, soft illumination and are designed to withstand vibration and strong winds. Built to meet explosion-proof requirements, they are ideal for demanding applications in the oil & gas, chemical processing, mining, energy, food processing, spray painting, coating, and other industrial sectors.
