| Model No. |
HB67-40W
|
HB67-60W
|
HB67-80W
|
HB67-100W
|
HB67-120W
|
|
|---|---|---|---|---|---|---|
|
Power
|
40W
|
60W
|
80W
|
100W
|
120W
|
|
|
Product Dimension
|
Φ320x182mm
|
|||||
|
Efficiency
|
150±10lm/W
|
|||||
|
Luminous Flux
|
6000±600lm
|
9000±900lm
|
12000±1200lm
|
15000±1500lm
|
18000±1800lm
|
|
|
CCT
|
3000K;4000K;5000K;5700K;6500K
|
|||||
|
Ingress Protection
|
IP65
|
|||||
|
IK Rating
|
IK08
|
|||||
|
Surge protection
|
6KV/10KV
|
|||||
|
Color Rendering Index
|
Ra>80
|
|||||
|
Beam Angle
|
60° 90° 120°
|
|||||
|
Driver Brand
|
TOMCARLINE
|
|||||
|
Input Voltage
|
AC200-240V
|
|||||
|
Power Factor
|
0.95
|
|||||
|
Frequency
|
50/60Hz
|
|||||
|
Driver Type
|
Constant Current (CC)
|
|||||
|
Luminaire Net Weight
|
1.7Kg
|
|||||
|
Packing Information
|
1PCS/CTN
|
|||||
|
Export Carton Size
|
36.5×36.5x23cm
|
|||||
|
Gross Weight
|
2.2Kg
|
|||||
| Material | Housing |
ADC12
|
||||
| Optics |
PC
|
|||||
|
Finish
|
Powder Coating
|
|||||
|
Fixture Color
|
White(Standard)/ Silver(Optional)
|
|||||
|
Mounting Option
|
Ring mounting(Standard)/ Hook Hanging(Optional)
|
|||||
|
Storage temperature range
|
-30℃~+70℃
|
|||||
|
Storage humidity range
|
85% max.
|
|||||
|
Operating temperature range
|
-30~+50℃ | |||||
|
Operating humidity range
|
85% max.
|
|||||
|
Life Time
|
50000 hours
|
|||||
|
Warranty
|
5 Years
|
|||||
|
Dimmable
|
0-10V dimmable
|
|||||
|
Optional Accessories
|
ZHAGA base with Microwave motion PLug & play 12V PIR sensor
|
|||||
|
Safety rope (0.5m length)
|
||||||

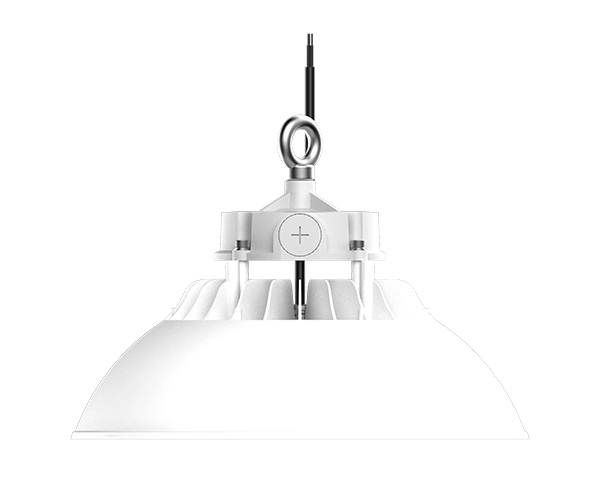

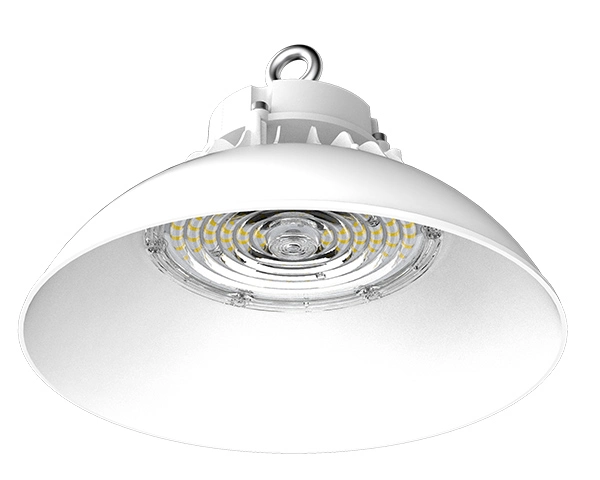

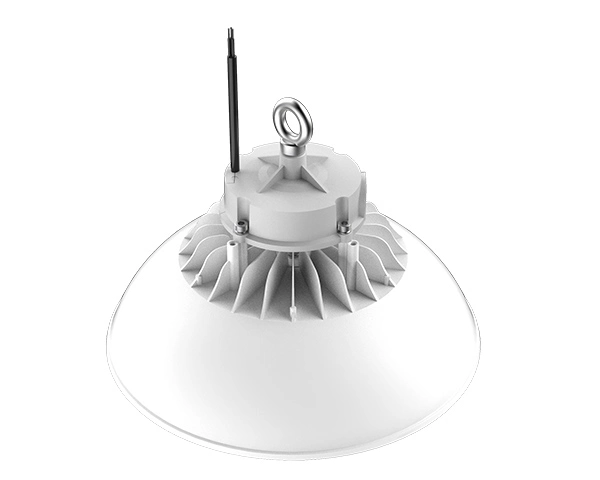

LED High Bay Light HB67
High-efficiency high bay lights deliver powerful, uniform illumination for spaces with mounting heights ranging from 4 to 12 meters. Designed for reliable and energy-efficient performance, they are ideal for warehouses, factories, supermarkets, indoor sports facilities, and a wide range of other commercial and industrial applications.
