| Model No. |
HL160-30W
|
HL160-40W
|
HL160-40W
(Emergency)
|
HL160-60W
|
HL160-80W
|
HL160-80W
(Microwave sensor) |
|
|---|---|---|---|---|---|---|---|
| Power | 30W |
40W
|
40W
|
60W
|
80W
|
80W
|
|
|
Product Dimension
|
719*116*73(mm)
|
719*116*73(mm)
|
719*116*73(mm)
|
1205*116*73(mm)
|
1205*116*73(mm)
|
1205*116*73(mm)
|
|
| Efficiency |
140±10lm/W (Milky PC Cover)
|
||||||
| Luminous Flux (±10%) |
4200±300lm
|
5600±400lm
|
5600±400lm
|
8400±600lm
|
11200±800lm
|
11200±800lm
|
|
|
High Efficiency
|
160±10lm/W (Clear PC Cover)
|
||||||
|
Luminous Flux (±10%)
|
4800±300lm
|
6400±400lm
|
6400±400lm
|
9600±600lm
|
12800±800lm
|
12800±800lm
|
|
| CCT |
3000K/4000K/5000K/5700K
|
||||||
| Ingress Protection | IP66 | ||||||
| IK Grade | IK10 | ||||||
|
Wind Resistance
|
LV.12
|
||||||
|
Color Rendering Index
|
Ra>70
|
||||||
|
Beam Angle
|
60°, 90°
|
||||||
|
Driver Brand
|
TOMCARLINE
|
||||||
|
Input Voltage
|
AC120-277V
|
||||||
|
Power Factor
|
>0.95
|
||||||
|
Frequency
|
47-63HZ
|
||||||
|
Driver Type
|
Constant Current (CC)
|
||||||
|
Luminaire Net Weight
|
3.6kg
|
3.6kg
|
3.8kg
|
5.7kg
|
5.7kg
|
5.7kg
|
|
|
Packing Information
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
|
|
Export Carton Size
|
94.0*18.0*13.5(cm)
|
94.0*18.0*13.5(cm)
|
94.0*18.0*13.5(cm)
|
142.5*18.0*13.5(cm)
|
142.5*18.0*13.5(cm)
|
142.5*18.0*13.5(cm)
|
|
|
Gross Weight
|
4.6kg
|
4.6kg
|
4.9kg
|
6.9kg
|
6.9kg
|
6.9kg
|
|
|
Cable gland
|
φ10.2mm for 9mm cable, φ14.2mm for 13mm cable.
|
||||||
| Material | Housing |
6063-T5 ADC12
|
|||||
| Optics |
PC Lens
|
||||||
| Finish | Powder Coating | ||||||
| Fixture Color | Red | ||||||
| Mounting Option |
Ceiling mounting/ Sidewall/ Pole mount
|
||||||
|
Storage temperature range
|
-30℃ – +60℃ | ||||||
|
Storage humidity range
|
85% max. | ||||||
|
Operating temperature range
|
-30~+45℃ | ||||||
|
Operating humidity range
|
85% max. | ||||||
| Life Time | 50000 hours | ||||||
| Warranty | 5 Years | ||||||
|
Dimmable
|
1-10V dimmable DALI dimmable
|
||||||

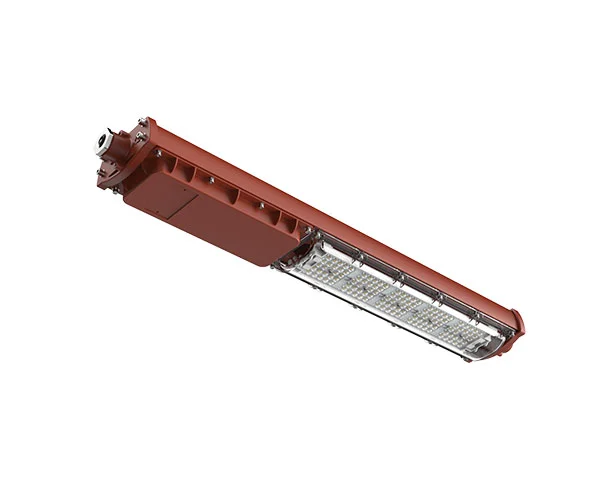

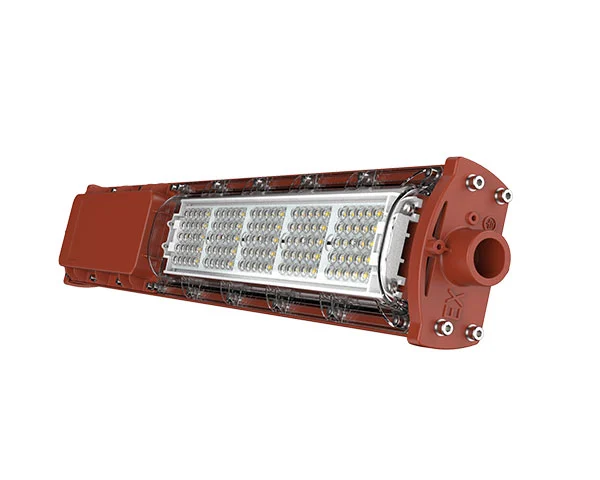

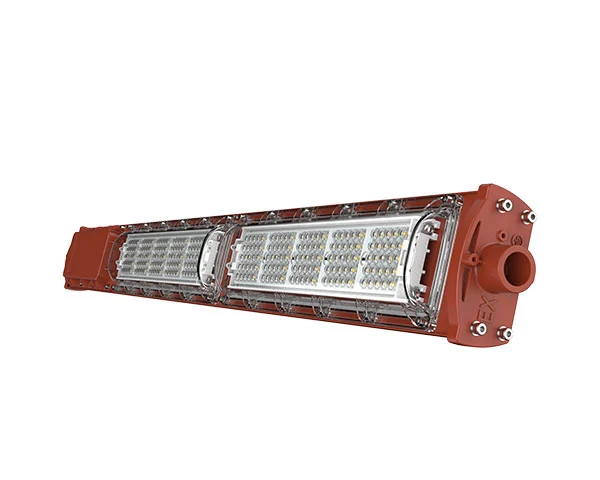

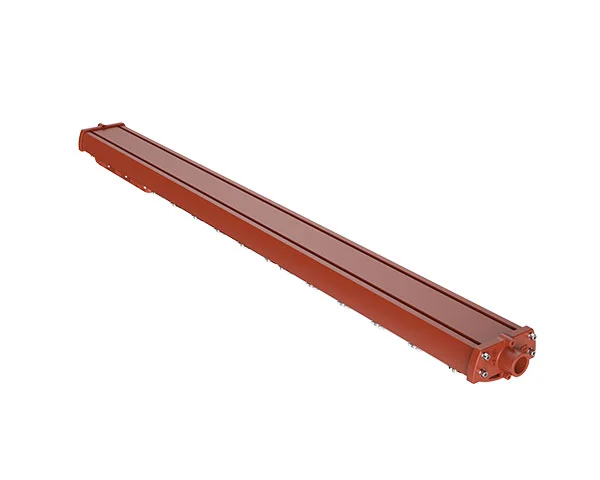

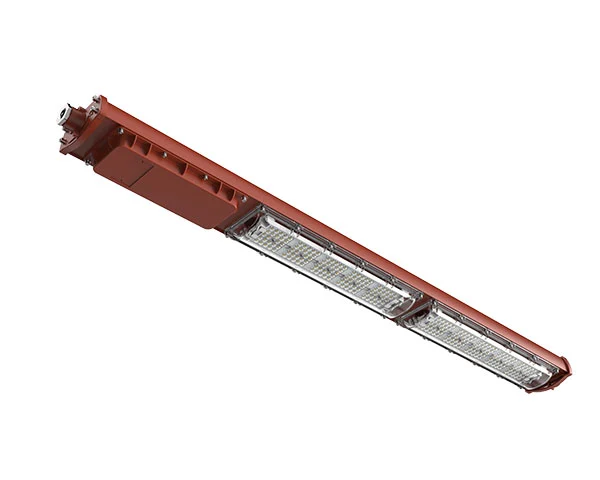

LED Linear Light Explosion Proof HL160
Safe, reliable, and energy-efficient, this lighting solution delivers uniform illumination and features a built-in backup battery for dependable emergency lighting, along with integrated motion sensors. Designed to withstand vibration and wind, it is ideal for demanding applications in the oil & gas, chemical processing, mining, energy, food processing, spray painting, coating, and other industrial sectors.
