Model No.
|
HL102-120W
|
HL102-240W
|
HL102-480W
|
||
|---|---|---|---|---|---|
|
Power
|
30W-120W
|
130W-240W
|
260W-480W
|
||
|
Product Dimension
|
Handle
|
328.4*324*65.3MM
|
328.4*364*65.3MM
|
658*350*77.3MM
|
|
|
Pole
|
298*450*79.5MM
|
298*490*79.5MM
|
null
|
||
| Efficiency |
150±10lm/W
|
||||
|
Luminous Flux(±10%)
|
4200~19200LM
|
18200-38400LM
|
36400-76800LM
|
||
|
CCT
|
3000K;4000K;5000K;5700K;6500K
|
||||
|
Ingress Protection
|
IP66,IK10
|
||||
|
CRI
|
Ra>70
|
||||
|
Beam Angle
|
TYPE2/ TYPE3/ TYPE4/ 140°
|
||||
|
Driver Brand
|
TOMCARLINE
|
||||
|
Input Voltage
|
AC120-277V
|
||||
|
Power Factor
|
>0.9
|
||||
|
Frequency
|
47-63Hz
|
||||
|
Driver Type
|
Constant Current(CC)
|
||||
|
Luminaire Net Weight
|
3.4kg
|
4kg
|
9.2kg
|
||
| Packing Information |
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
||
|
Gross Weight
|
4.0kg
|
4.6kg
|
10.4kg
|
||
|
Export Carton Size
|
38.2*35.0*14.4CM
|
73*42.2*15.4CM
|
|||
|
Cable entry diameter
|
∅8 – ∅10mm, ∅11 – ∅14mm
|
||||
|
Cable entry thread
|
M25×1.5
|
||||
|
Material
|
Housing
|
ADC12
|
|||
|
Optics
|
PC
|
||||
|
Fixture Color
|
White aluminum
|
||||
|
Installation
|
Handle mounting / pole mounting
|
||||
|
Operating temperature range
|
-35~+40℃
|
-35~+60℃
|
|||
|
Life Time
|
50000 hours
|
||||
|
Warranty
|
5 Years
|
||||
|
Dimmable
|
Non-dimmable
|
||||
|
Optional accessories
|
1-10V dimmable
|
||||
|
Certifications
|
Ex nR IIC T6 Gc (30W-120W)
Ex tb IIIC T80 Db (30W-120W)
|
Ex nR IIC T4 Gc (30W-120W)
Ex tb IIIC T130 Db (30W-120W)
|
|||
|
Ex nR IIC T5 Gc (130W-480W)
Ex tb IIIC T95 Db (130W-480W)
|
Ex nR IIC T4 Gc (130W-480W)
Ex tb IIIC T130 Db (130W-480W)
|
||||

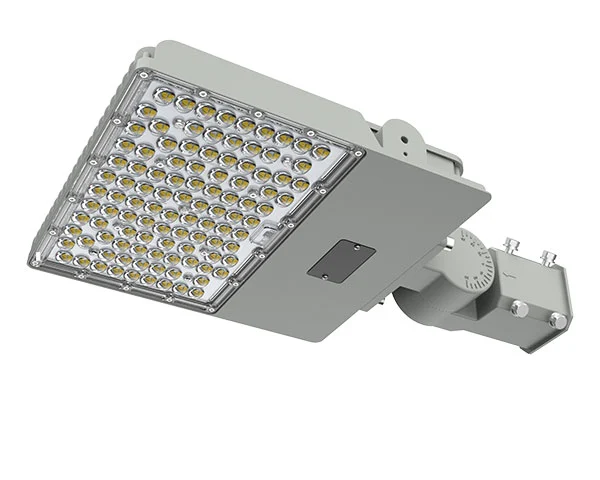

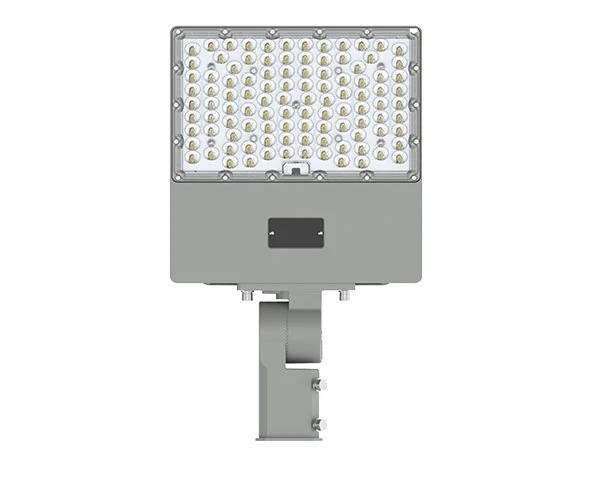

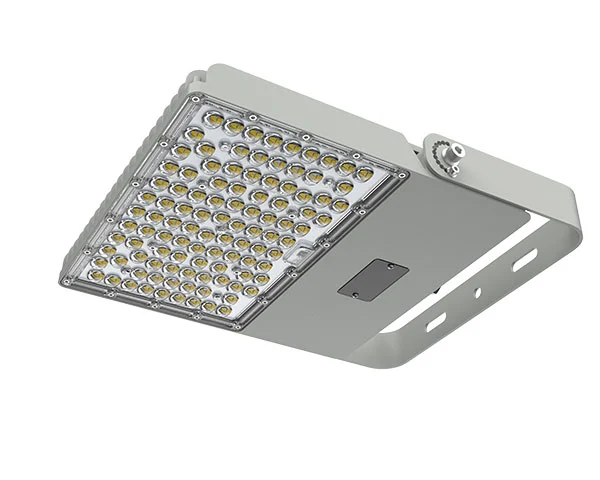

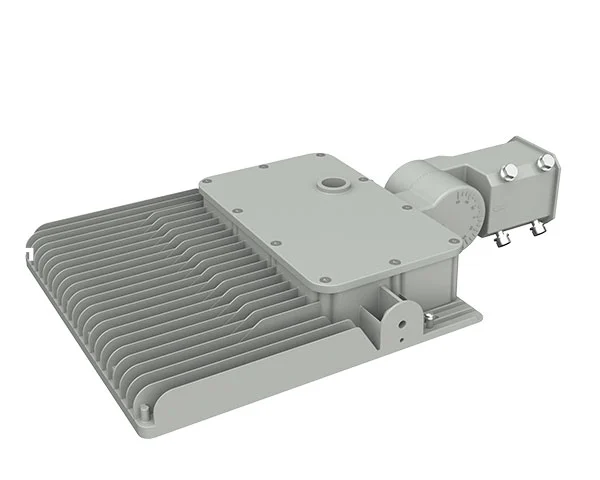

LED Street Light Explosion Proof HL102
Designed for reliable road lighting in hazardous environments, this product provides dependable illumination for a wide range of demanding industrial locations. It is ideal for roads and outdoor areas within oil & gas facilities, chemical plants, mining sites, food processing plants, spray painting areas, hazardous material storage facilities, and other similar environments.
