| Model No. |
T503-20W12
|
T503-40W12
|
T503-40W15
|
|
|---|---|---|---|---|
| Product Dimension |
1198*68*54 mm
|
1198*68*54mm
|
1498*68*54 mm
|
|
| Efficiency |
150 ±10lm/W
|
|||
| Luminous Flux |
3000±200 lm
|
6000±400lm
|
6000±400lm
|
|
| CCT |
3000K 4000K 5000K 5700K 6500K
|
|||
| Ingress Protection |
IP65
|
|||
| Color Rendering Index | Ra>80 | |||
| Beam Angle |
120°
|
|||
|
Driver Brand
|
TOMCARLINE
|
|||
| Input Voltage |
AC200-240V
|
|||
| Power Factor | 0.95 | |||
| Frequency |
50-60HZ
|
|||
|
Driver Type
|
Constant Current
|
|||
| Luminaire Net Weight |
0.9kg
|
0.9kg
|
1.2kg
|
|
| Packing Information |
10PCS/CTN
|
10PCS/CTN
|
10PCS/CTN
|
|
| Export Carton Size |
133*44*22CM
|
133*44*22CM
|
163*44*22CM
|
|
| Gross Weight |
12KG
|
12KG
|
16KG
|
|
| Material | Housing |
PC
|
||
| Optics |
PC(Frosted)
|
|||
| Fixture Color |
White
|
|||
| Mounting Option |
Ceiling Mounted
|
|||
| Storage temperature range | -30℃-+80℃ | |||
| Storage humidity range | 85% max. | |||
| Operating temperature range | -30~+45℃ | |||
| Operating humidity range | 85% max. | |||
| Life Time |
50000 hours
|
|||
| Warranty |
5 Years
|
|||
|
Optional Accessories
|
Suspending ropes
|
|||

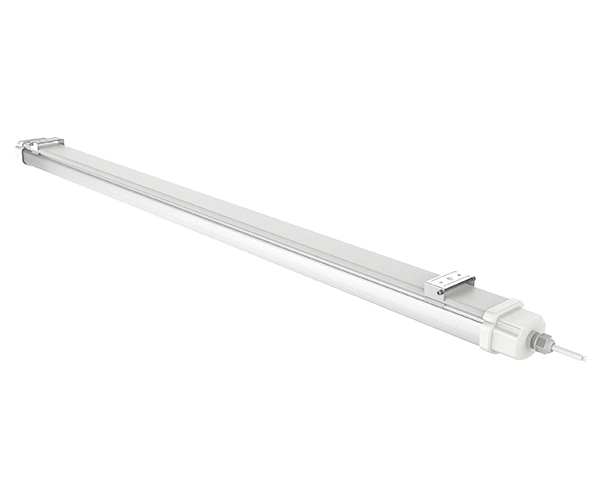

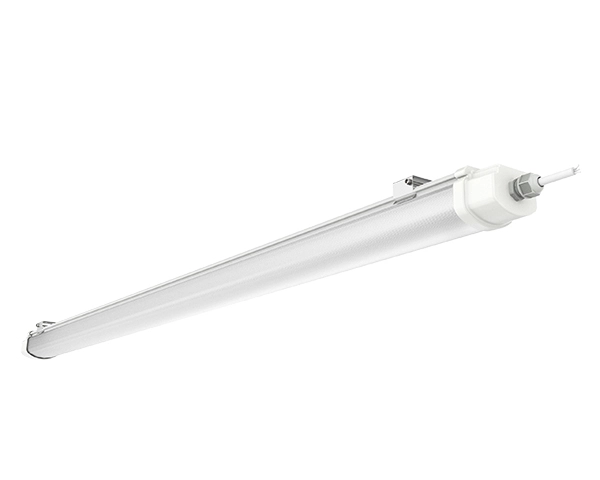

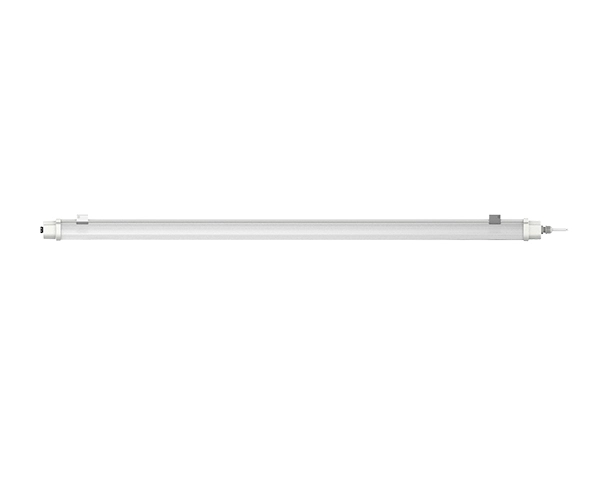

LED Tri-proof Light T503
High-efficiency tri-proof lights deliver soft and comfortable illumination while providing reliable performance in demanding environments. Ideal for a wide range of industrial applications, including warehouses, factories, assembly lines, tunnels, ports, and other similar settings.
